Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights

Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights

Detalhes do produto

Lugar de origem: China

Marca: HuanYu Dream

Certificação: RoHS

Número do modelo: 3030 VCSELS de duas cores

Termos de pagamento e envio

Quantidade de ordem mínima: Negociável

Preço: Negociável

Detalhes da embalagem: 5000pcs/bobina

Tempo de entrega: 7-9 dias de trabalho

Termos de pagamento: T/T, PayPal, Ali Pay

Habilidade da fonte: 500000pcs/dia

Obtenha o melhor preço

Detalhes do produto

Descrição do produto
Destacar:

Dual Color VCSEL SMD LED chip

,

Bi-Color SMD LED for phototherapy

,

Customizable spectrum LED for sauna lights

Tipo de LED:
LED 3030 SMD
Cor (CCT):
450nm+660nm
Tensão:
3.0-3.2V
Poder:
canal único 0,5 watts
Atual:
20mA
Substrato:
PCT
Garantia:
3 anos
recurso:
2 cores
Tipo de LED:
LED 3030 SMD
Cor (CCT):
450nm+660nm
Tensão:
3.0-3.2V
Poder:
canal único 0,5 watts
Atual:
20mA
Substrato:
PCT
Garantia:
3 anos
recurso:
2 cores
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights
Dual Color VCSELs 3030 SMD LED Chip
Product Overview

Dual Color 3030 VCSELs SMD LED Chip featuring 460nm, 660nm, and 850nm wavelengths with two-color spectrum customization available. Rated at 1W, ideal for phototherapy equipment, large LED light panels, and sauna room lighting applications.

Technology Comparison: VCSELs vs LEDs

VCSELs (Vertical-Cavity Surface-Emitting Lasers) produce coherent laser light, while LEDs (Light Emitting Diodes) emit incoherent light, resulting in significant differences in optical characteristics and performance.

Working Principle & Optical Characteristics:
• VCSEL: Stimulated emission with narrow spectral width (single wavelength), strong directionality (20° divergence)
• LED: Spontaneous emission with wider spectral width, larger divergence angle (180°)
Performance Advantages:
• Electro-optical Efficiency: VCSELs up to 56% vs LEDs ~20%
• Response Speed: VCSELs nanoseconds vs LEDs slower response
• Beam Quality: VCSELs excellent collimation with high coupling efficiency
Key Features
  • Power: 1W (3V × 150mA × 2) with tunable color
  • VCSELs LED technology
  • Low thermal resistance
  • Super long life >50,000 hours
  • Compact structure enabling higher power in smaller size
  • White colors available (2700K-25000K) with high CRI color mixing
  • Bright colors and true appearance for therapy light applications
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights 0
Technical Specifications
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights 1
Parameter Specification
Electronic Power 0.5W × 2
Color Temperature 460nm + 660nm (450nm, 520nm, 850nm, 730nm, 1072nm available)
CRI 80
Forward Voltage (VF) 3.0-3.2V
Forward Current (IF) 150mA × 2
Lumen Output 75-80LM / 80-85LM
Whole Size 3.0 × 3.0mm
Chip Source Sanan/Epistar
View Angle 120°
Warranty 3 years
Lead Time 7-10 days

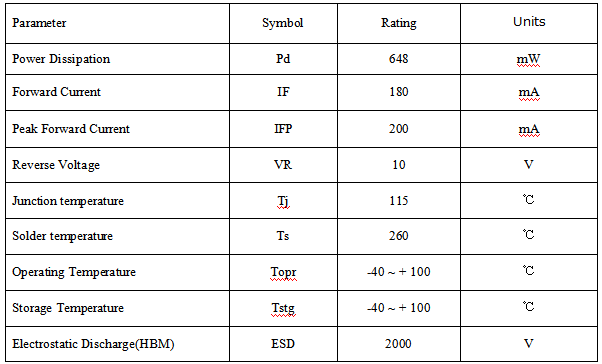

Maximum Ratings
LED Maximum Ratings at Ta=25℃
Dimensions
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights 3
Applications
  • Therapy Light systems
  • Indoor lighting: Fluorescent lamps, tubes
  • Commercial illumination and displays: Advertising signage, light boxes
  • Light strips
  • LCD Back lighting
  • General illumination and display applications
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights 4
Detailed Application Scenarios
Home Lighting & Atmosphere

Main Bedroom Lighting & Sleep Aid: Warm White (2700K-3000K) + Red Light (620-660nm) for daily lighting and sleep-inducing atmosphere.

Living Room Ambiance: Dual-color SMD (cool white + warm yellow) for daytime brightness and nighttime cozy atmosphere.

Commercial Display & Decoration

Store Windows & Product Displays: Warm white + cool white for clothing stores; white light + violet light for jewelry/cosmetics.

Medical & Nursing Applications

Skin Care & Physical Therapy: Red light (660nm) + blue light (415nm) for skin treatment and acne improvement.

Industrial & Indicator Applications

Device Status Indicators: Dual-color "red (fault) + green (normal)" for equipment control panels.

Consumer Electronics

Mobile/Tablet Fill Light: Warm white for portraits, cool white for scenery with adjustable color temperature.

Company Information
Dual Color VCSELs 3030 SMD LED Chip 460nm 660nm 850nm Two Colors Spectrum Customization Available 1W For Phototherapy equipment, large LED light panel, sauna room lights 5
Frequently Asked Questions
Q1. How to proceed with an order for LED lights?
A: First, provide your requirements or application. Second, we quote according to your requirements or our suggestions. Third, confirm samples and place order.
Q2. What about the lead time?
A: Samples require 1-3 days; mass production takes 3-7 days depending on order quantity.
Q3. Do you have any MOQ limit for LED light orders?
A: MOQ is 100pcs for each model.
Q4. Can I place a sample order for LED lights?
A: Yes, we welcome sample orders for quality testing. Mixed samples are acceptable.
Q5. How do you ship goods and how long does delivery take?
A: We typically ship via DHL, UPS, FedEx or TNT (2-5 days). Airline and sea shipping also available.
Q6. How do you handle faulty products?
A: Our products have less than 0.2% defective rate. During warranty, we provide new replacements.
Q7. Do you offer product guarantee?
A: Yes, we offer 3-year warranty on all products.
