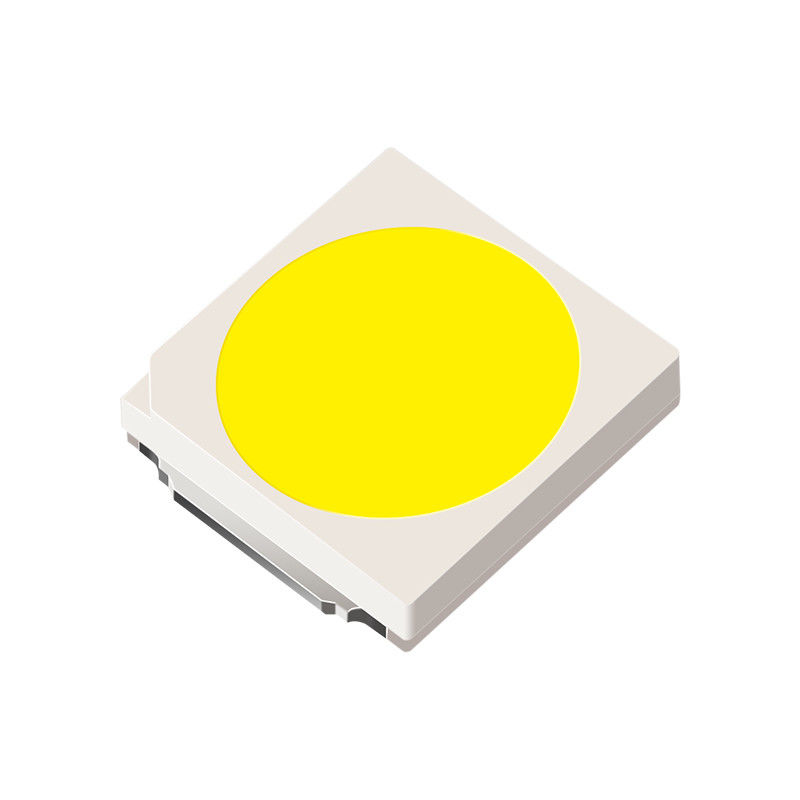

5050 5054 High-Light Efficiency SMD Natural White Spot Lights LED

Name: 5050 5054 High-Light Efficiency SMD Natural White Spot Lights LED
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054W40L80-6V6S
Price: 12.20 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: HuanYu Dream

Certificação: Rohs

Número do modelo: HY-5054W40L80-6V6S

Termos de pagamento e envio

Quantidade de ordem mínima: Negociável

Preço: Negociável

Detalhes da embalagem: 4000pcs/bobina

Tempo de entrega: 7-9 dias de trabalho

Termos de pagamento: T/T, PayPal, Ali Pay

Habilidade da fonte: 200kkkpcs/mês

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:
                                                                                                                                                                                                                                                                                                                5050 SMD LED spot lights, high-efficiency 5054 LED chips, natural white LED spotlights


Modelo:	HY-5054W40L80-6V6S	Atual (MA):	450 mA
Voltagem（V）:	5.2-5.4V	Cor:	4000K
CRI (Ra):	70	Eficiência (LM/W):	250LM/W@60MA
Substrato:	PCT	Personalizável:	Apoiar

Modelo:	HY-5054W40L80-6V6S
Atual (MA):	450 mA
Voltagem（V）:	5.2-5.4V
Cor:	4000K
CRI (Ra):	70
Eficiência (LM/W):	250LM/W@60MA
Substrato:	PCT
Personalizável:	Apoiar

5050 5054 High-Light Efficiency SMD Natural White Spot Lights LED

Product Specifications

Attribute	Value
Model	HY-5054W40L80-6V6S
Current(mA)	450mA
Voltage（V）	5.2-5.4V
Color	4000K
CRI（Ra）	70
Efficiency(lm/w)	250LM/W@60mA
Substrate	PCT
Customizable	Support

Key Features

Highly Efficient and Energy-Saving: At an operating current of 60mA, its energy conversion efficiency reaches a top-tier 250 lm/W.
Brightness: A single LED provides approximately 80-85 lumens of light output, suitable for lighting applications requiring multiple LEDs.
Low Heat Generation: Low current 60mA operation results in lower self-heating.
Long Lifespan: 50,000 hours of operation.

Technical Specifications

Electronic power	2W
Color Temperature	4000K
Current(IF)	450mA
VF	5.3-5.5V
Light Efficiency	250lm/w@60mA
CRI	70
Lumen	80-85LM
WHOLE SIZE	5.0*5.4mm
CHIP	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years

Package Size

Applications

Commercial and industrial large-scale lighting (warehouses, factories, shopping malls, offices)
Public facility lighting (subway stations, libraries, hospitals)
Long-duty residential lighting
Power-sensitive solar lighting systems
