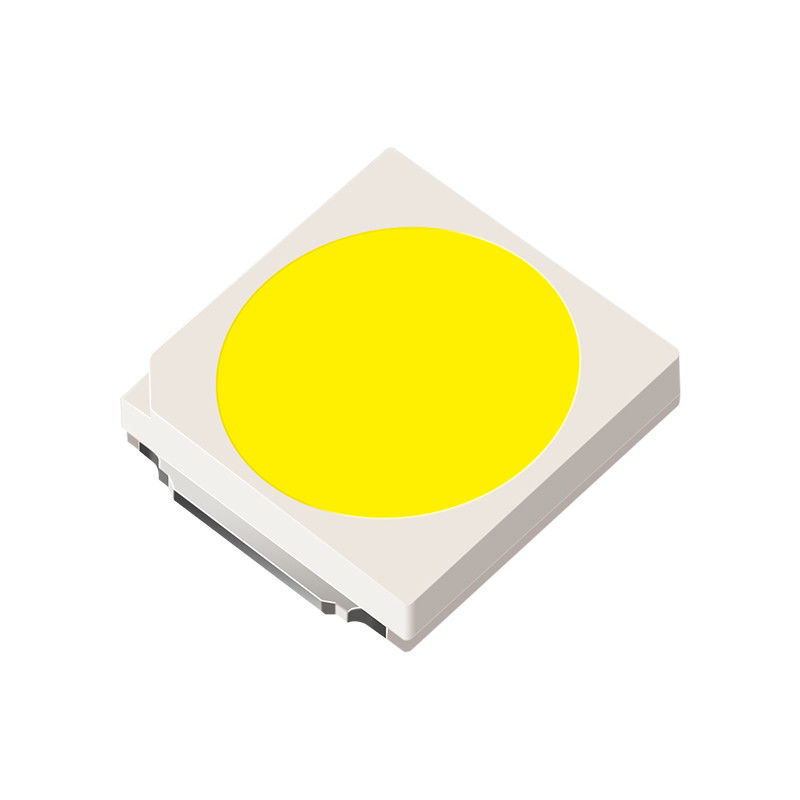

SMD 5054 High Efficiency 225-235LM/W@45mA 18V White LED CHIP

Name: SMD 5054 High Efficiency 225-235LM/W@45mA 18V White LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: HY-5054W40L215-18V6S
Price: 12.20 USD
Availability: InStock

Detalhes do produto

Lugar de origem: China

Marca: HuanYu Dream

Certificação: Rohs

Número do modelo: HY-5054W40L215-18V6S

Termos de pagamento e envio

Quantidade de ordem mínima: Negociável

Preço: Negociável

Detalhes da embalagem: 4000pcs/bobina

Tempo de entrega: 7-9 dias de trabalho

Termos de pagamento: T/T, PayPal, Ali Pay

Habilidade da fonte: 200kkkpcs/mês

Obtenha o melhor preço

Detalhes do produto

Descrição do produto

Destacar:
                                                                                                                                                                                                                                                                                                                SMD 5054 high efficiency LED chip, 5054 white LED chip 18V, 5054 LED chip 225LM/W


Modelo:	HY-5054W40L215-18V6S	Atual (MA):	150mA
Tensão （v）:	16-18V	cor:	4000K (3850-4150K)
CRI (Ra):	70	Eficiência (LM/W):	225-235LM/W@45mA
Substrato:	PCT	Personalizável:	Apoiar

Modelo:	HY-5054W40L215-18V6S
Atual (MA):	150mA
Tensão （v）:	16-18V
cor:	4000K (3850-4150K)
CRI (Ra):	70
Eficiência (LM/W):	225-235LM/W@45mA
Substrato:	PCT
Personalizável:	Apoiar

SMD 5054 High Efficiency 225-235LM/W@45mA 18V White LED CHIP

High-performance SMD 5054 LED chip delivering exceptional luminous efficacy and energy efficiency for professional lighting applications.

Key Features

Model: 5054 packaged LED
Power Consumption: 2 watts
Voltage: 18 volts
Color: Neutral white (4000K)
High Efficiency: Ultra-high luminous efficacy and extremely energy-efficient (225-235 lumens/watt)

Product Specifications

Attribute	Value
Model	HY-5054W40L215-18V6S
Current(mA)	150mA
Voltage(V)	16-18V
Color	4000K(3850-4150K)
CRI(Ra)	70
Efficiency(lm/w)	225-235LM/W@45mA
Substrate	PCT
Customizable	Support

Technical Specifications

Parameter	Specification
Electronic power	2W
Color Temperature	4000K(3850-4150K)
Current(IF)	150mA
VF	16-18V
Light Efficiency	225-235lm/w@45mA
CRI	70
Lumen	215-225LM
Whole Size	5.0*5.4mm
Chip	Sanan/Epistar
View Angle	120°
Warranty	3 years

Package Size

Applications

Commercial lighting Energy-sensitive applications including office, classroom, and supermarket lighting. Industrial lighting Large spaces with extended operating times such as factories, parking lots, and train stations. High-end residential lighting Critical areas requiring clear and comfortable illumination including kitchens and studies. Series lighting fixtures Lighting fixtures suitable for high-voltage series driving applications such as fluorescent tubes and linear lights.
